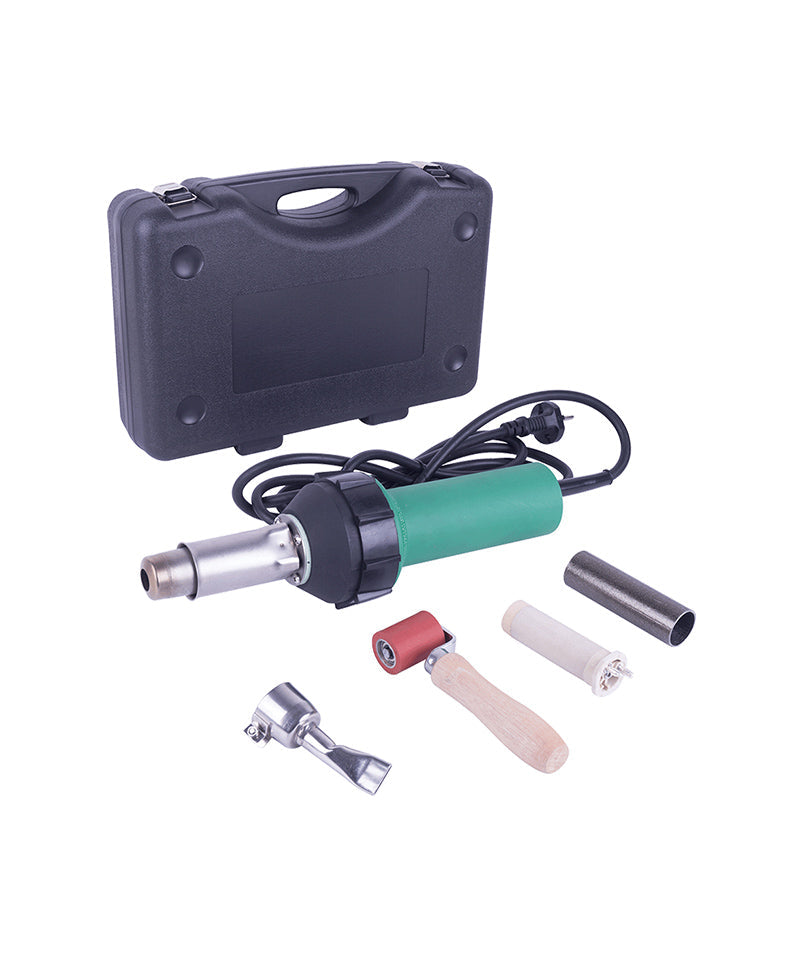

RYA1600D & RYA1600S Hot Air Welding Guns: Precision Hand Welding for HDPE, PP & PVC Fabrication

Every fabrication shop needs a reliable handheld hot air welder for detail work, repairs and tight spaces that automatic machines simply cannot reach. The RYA series is Weissenberg’s own-brand hot air welding gun line — the RYA1600D with a digital temperature display and the RYA1600S with a simple rocker-switch control. Both guns are built in our own factory with rigorous quality control, so you get proven welding performance at a direct-from-manufacturer price.

Every RYA gun is CE marked and double insulated, manufactured in an ISO 9001-certified facility, and covered by a 1-year warranty and our lifetime technical support — from selection through on-site troubleshooting.

RYA1600D vs RYA1600S: Specifications at a Glance

The two models share the same 1600 W heating system, motor and 20–620 °C control range. The D model adds a digital display for precise, repeatable temperature setting; the S model keeps the classic rocker-switch control for fast, no-nonsense field operation. Both are available with EU, US and UK plug options (120 V version available).

Specification	RYA1600D (Digital)	RYA1600S (Standard)
Power	1600 W	1600 W
Voltage	230 V, 50/60 Hz	230 V, 50/60 Hz
Temperature range	20–620 °C, continuously adjustable	20–620 °C, continuously adjustable
Temperature control	Digital display, precise set-point	Rocker switch, analog dial
Max. air volume	180 L/min	180 L/min
Air pressure	2600 Pa	2600 Pa
Noise level	≤65 dB	≤65 dB
Net weight	1.05 kg	1.1 kg
Certifications	CE marked, double insulated	CE marked, double insulated
Warranty	1 year	1 year

Ready to add a reliable hot air welder to your workshop? Compare the RYA1600D and RYA1600S at the Weissenberg Store, or contact our team to confirm the right model for your materials.

Hot Air Hand Welding Parameters by Material

Welding parameters for hand-held hot air welding are defined in DVS 2207-3 Supplement 1. Use these ranges as starting points, then confirm with a test weld on scrap material — actual values shift with ambient temperature, sheet thickness and travel speed.

Material	Hot air temperature	Air volume	Travel speed
PE-HD (HDPE)	300–320 °C	40–50 L/min	70–90 mm/min
PP (types 1–3)	305–315 °C	40–50 L/min	60–85 mm/min
PVC-U	330–350 °C	40–50 L/min	110–170 mm/min
PVC-C	340–360 °C	40–50 L/min	55–85 mm/min
PVDF	350–370 °C	40–50 L/min	45–50 mm/min

Where the RYA Series Excels: Key Applications

• Chemical tank & duct fabrication — welding HDPE and PP sheets for electroplating tanks, scrubbers and fume ducting.
• Geomembrane & liner repair — sealing patches, details and corners on pond liners and landfill caps that automatic wedge welders cannot reach.
• Pipe & fitting welding — socket and saddle details on non-pressure ducting, drainage and ventilation lines.
• Plastic flooring & coated fabrics — overlap seams on PVC flooring and tarpaulins.
• Hot forming & shrinking — bending sheets, shrinking heat-shrink materials, drying and ignition tasks.

RYA1600D or RYA1600S: Which Should You Choose?

• Choose RYA1600D if you weld several materials and need repeatable, precise temperatures — the digital display lets you read, set and monitor the exact temperature for each job.
• Choose RYA1600S if you want the simplest tool for routine work — same 1600 W performance with straightforward switch control.

For long straight production seams on thick sheet, pair the RYA gun with one of our Booster EX2/EX3 extrusion welders. For large-format membrane work, the Weldy Energy HT3400 delivers higher airflow — see our HT1600 vs HT3400 guide.

Techniques for a Strong, Lasting Weld

1. Prepare the joint: clean and prepare the welding surfaces using a method compatible with the material manufacturer’s recommendations; prepare the joint profile (typically a V-groove for rod welding) following the material manufacturer’s recommendation; keep rod and sheet dry — moisture causes porosity.
2. Set and verify temperature: select the material temperature above and confirm with a test weld — the rod should melt and flow into the groove with a glossy surface.
3. Tack first: tack-weld at several points along the joint to hold alignment before running the seam.
4. Feed the rod at a comfortable angle: use a slight weaving motion to heat both groove walls evenly and keep a steady, even travel pace.
5. Let the bead cool naturally: a bead cooled in a draft can develop centerline cracks.

For speed welding, fit a speed nozzle with matching welding rod; for overlap seams on sheets, use the wide-slot nozzle and follow with a silicone pressure roller while the material is still above its softening temperature. For applicable nonreinforced geomembrane seams, destructive peel and shear testing may be performed according to project QA/QC requirements and standards such as ASTM D6392.

Maintenance That Extends Service Life

• Clean the nozzle while hot: scrape off melted plastic with a brass wire brush after each use — a blocked nozzle restricts airflow and overheats the element.
• Keep the air intake clear: blow out the intake filter with low-pressure compressed air regularly; a clogged filter drops airflow and makes the motor run hot.
• Cool before shutdown: reduce the temperature and let the fan run for a short period before switching off so the element cools gradually — thermal shock shortens element life.
• Use the right nozzle: an undersized nozzle backs heat up into the tool and can burn out the heating element.
• Store dry: keep the gun in its case in a clean, dry environment; check the power cord and plug before each use.

Buyer FAQ

What is the difference between the RYA1600D and RYA1600S?
Both share the same 1600 W heating system, motor and 20–620 °C control range. The RYA1600D adds a digital display so you can read, set and monitor the exact temperature for repeatable results. The RYA1600S uses a splash-resistant rocker switch for fast, no-nonsense operation in the field.

Which materials can these guns weld?
Both models weld thermoplastics including HDPE, PP, EVA, PVC and PVDF using the appropriate nozzle and welding rod. They also handle hot forming, heat shrinking, drying and other hot-air jobs. For seams on sheets and liners, pair the gun with the matching speed or slot nozzle and a silicone pressure roller.

What plug options are available?
Both guns are offered with EU, US and UK plugs and are available in 230 V and 120 V versions to match local supply.

What is covered by the warranty?
Every RYA gun carries a 1-year warranty against manufacturing defects, and Weissenberg provides lifetime free technical support — from selecting the right nozzle to troubleshooting on site.

Get Your RYA Series Hot Air Gun

Browse the RYA1600D and RYA1600S with full specifications, nozzle kits and genuine accessories at the Weissenberg Store. Built in our own factory with rigorous quality control and backed by a 1-year warranty and lifetime technical support — contact our team for help choosing the right gun for your application.

By Weissenberg Technical Team — 20+ years in plastic welding equipment.
