WGW 300 vs Miniwelder Geo2: Which Welder Should You Buy?

1. Why Your Welder Choice Makes or Breaks the Project

Here's the reality: when you're laying HDPE liner on a 10-hectare landfill or waterproofing a fish farm, the welder you choose directly affects seam consistency, installation efficiency, and long-term liner performance.

Geomembrane welding isn't a one-size-fits-all job. A machine that's perfect for 2mm-thick mining liners is overkill — and physically exhausting — for a backyard pond. The wrong choice costs you time, rework, and in regulated projects, failed CQA inspections.

This guide compares Weldy's two hot-wedge geomembrane welders side by side, so you can buy the right one today and start welding with confidence. Weissenberg is the official Weldy distributor — every machine ships from stock, backed by full warranty and lifetime technical support.

🔍 Browse All Weldy Welders →

2. Weldy WGW300 — Built for Heavy-Duty Geomembrane Work

The WGW300 is a 15kg workhorse designed for demanding terrain and thick membranes. With 1,750W heating power and an 80mm copper hot wedge, it reliably welds HDPE from 0.8 to 2.5mm, plus PVC, TPO, FPO, and CSPE up to 3.0mm.

Three large rollers provide stability on uneven ground, and the powerful drive motor grips membranes on inclines approaching vertical. The temperature sensor embedded in the center of the wedge ensures precise thermal control throughout the weld — exactly what CQA inspectors want to see on landfill projects.

Best for: Landfill lining, mining leach pads, large reservoirs, canal waterproofing, any project with HDPE 1.0mm or thicker.

🛒 Buy Weldy WGW300 — $3,200 · Free Shipping · In Stock

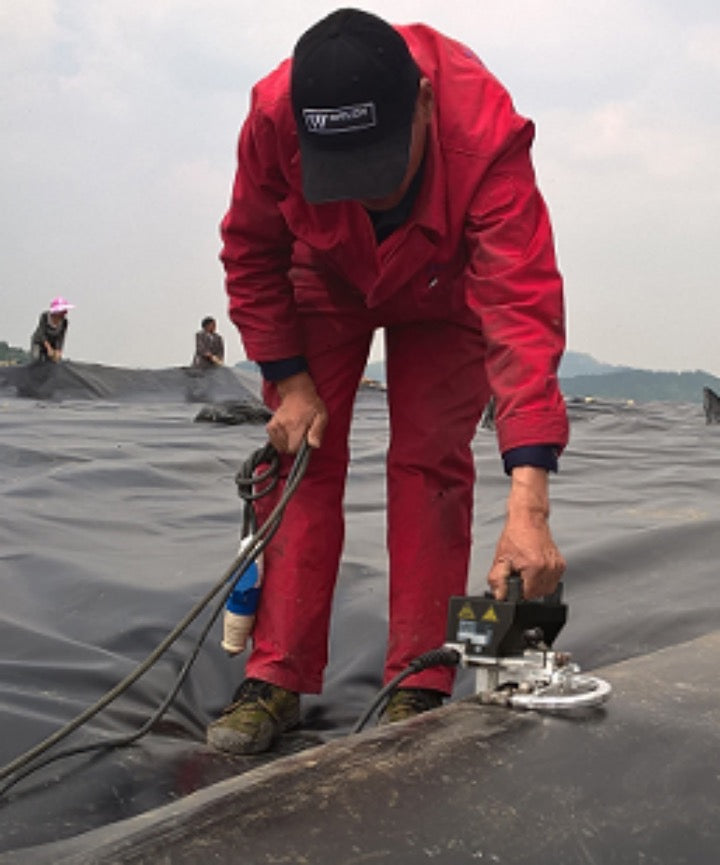

3. Weldy Miniwelder Geo2 — Lightweight Precision for Thin Membranes

At just 3.9 kg (less than a carry-on bag), the Miniwelder Geo2 is among the lightest automatic wedge welders available. Don't let the size fool you — this machine produces professional-grade dual-track welds with the same 2×12mm seam width as the WGW300.

It targets thinner geomembranes (0.5–1.5mm; HDPE 0.4–1.0mm) and excels in applications where portability matters: fish farm tanks, garden ponds, pool waterproofing, foundation sealing. The revolutionary chain-free drive and automatic wedge positioning mean you get consistent welds without wrestling a heavy machine.

Best for: Aquaculture ponds, fish breeding tanks, garden pools, foundation waterproofing, artificial lakes, confined spaces.

🛒 Buy Weldy Miniwelder Geo2 — $1,150 · In Stock · CE Certified

4. Side-by-Side Comparison: WGW300 vs Miniwelder Geo2

Here's the quick-reference table to help you decide which machine fits your project — and your budget:

Feature	WGW300	Miniwelder Geo2
Price	$3,200	$1,150
Best For	Landfills, mines, reservoirs, HDPE 1.0–2.5mm	Aquaculture, ponds, foundations, HDPE 0.5–1.5mm
CE Marking	✗ Not CE certified	✓ CE + CB Certified
Power	1,750 W	800 W
Max Temperature	450 °C	480 °C
Welding Speed	0–8.5 m/min	0.4–7.5 m/min
Material Thickness	HDPE 0.8–2.5 mm	HDPE 0.5–1.5 mm
Hot Wedge	80mm, copper	50mm, stainless steel
Max Overlap	150 mm	100 mm
Weight	15 kg	3.9 kg
Weldable Materials	HDPE, LDPE, LLDPE, PP, TPO, FPO, CSPE	HDPE, LDPE, LLDPE, PP, PVC, CSPE, FPO
Buy	Add to Cart →	Add to Cart →

5. Which One Should You Pick?

Still unsure? Here's the honest breakdown by project type:

• 🗺 Landfill or mining project? Get the WGW300. You need the 1750W power, 80mm wedge, and 15kg stability to handle 2mm+ HDPE on uneven ground. Note: Not CE certified — plan accordingly if your jurisdiction requires CE marking.
• 🐟 Aquaculture, fish farm, or garden pond? Get the Miniwelder Geo2. At 3.9kg and $1,150, it's the obvious choice for thin membranes (0.5–1.5mm). CE + CB certified, making it a suitable choice where CE-compliant equipment is required.
• 🏗 Waterproofing foundations or basements? Miniwelder Geo2. The compact 228×228mm body fits where the WGW300 (445×300mm) simply can't go.
• 🌊 Large canals or reservoirs? WGW300. The 150mm overlap capacity and 8.5m/min speed mean fewer passes and faster project completion.

6. Relevant Industry Standards for Geomembrane Welding

Before you buy, know the standards your project will demand. Here are the relevant ASTM standards for geomembrane wedge welding:

• ASTM D6392 — Destructive peel and shear testing. This is the standard CQA engineers use to verify seam strength. Both machines produce dual-track seams that pass D6392 when parameters are correct.
• ASTM D5820 — Non-destructive air channel pressure testing. The unwelded test channel between the two seam tracks is pressurized with air to detect leaks without cutting the liner — widely used for quality control on dual-track geomembrane seams.
• ASTM D8580-24 — New standard, published July 2024. Sets comprehensive requirements for wedge welding equipment: closed-loop temperature/speed control, operator-visible pressure display, equipment design without sharp edges.

CE compliance note: The Miniwelder Geo2 carries CE and CB certification. The WGW300 does not carry CE marking per Weldy's official specifications ("no CE – no use in Europe"). If your project requires CE-compliant equipment, the Miniwelder Geo2 is your clear choice.

7. Buyer FAQ — Your Top Questions Answered

What voltage should I order?

The WGW300 requires 230V AC (~1750W, 15A). The Miniwelder Geo2 runs on 230V AC (~800W, 6A). If your job site uses 110–120V mains, you will need a step-up transformer for either machine. Please confirm your site power before ordering — contact our team if you are unsure which voltage configuration is right for you.

What consumables or spare parts should I order with the welder?

We recommend adding at least one spare heating wedge (the most common wear part) and a set of wire brushes for daily cleaning. For field projects, add a spare PTFE glass tape roll. All consumables are available on the Weldy collection page. Our support team can recommend a spares kit based on your project scope.

How long does shipping take from Weissenberg Store?

Orders ship from our Dongguan facility, typically within 24 hours of payment confirmation. Express shipping (DHL/FedEx) reaches most countries in 3–7 business days. We'll provide a tracking number the moment your order leaves the warehouse.

Do I need special training to operate these welders?

Both machines are designed for professional use but are straightforward to learn. The Miniwelder Geo2 features automatic wedge positioning that simplifies setup. For operators new to hot wedge welding, we provide free technical guidance via email or Facebook Messenger — including parameter recommendations for your specific membrane and conditions. For large projects, consider ordering one extra machine for operator training and backup.

What warranty and after-sales support are included?

Every Weldy machine from Weissenberg comes with a 1-year manufacturer warranty backed by Leister Group. We also provide lifetime free technical support — our technicians can help with parameter settings, troubleshooting, and maintenance advice. All machines ship with full Weldy documentation and warranty card. For warranty claims, contact our support team directly and we will coordinate with Leister's global service network.

8. Why Buy from Weissenberg?

Weissenberg has been the official Weldy distributor since 2006. When you order from us, you get:

• ✓ Genuine Weldy products — No clones, no gray market. Every machine ships with full Weldy warranty.
• ✓ 1-year manufacturer warranty — Backed by Leister Group's global service network.
• ✓ Lifetime free technical support — Our technicians speak your language and know these machines inside out.
• ✓ In-stock, ready to ship — From our Dongguan facility, typically dispatched within 24 hours.
• ✓ Secure checkout — Pay by credit card, PayPal, or wire transfer directly on weissenbergstore.com.

Both machines are listed with full pricing, stock status, and warranty terms on the product pages — no hidden fees, no "request a quote," just add to cart and check out.

Weissenberg Technical Team — 19+ Years of Thermoplastic Welding Expertise. Official Weldy Distributor since 2006.
