By Weissenberg Technical Team — 19+ years of experience in thermoplastic welding technology
1. What Is the Weldy Roof40 Automatic Roofing Welder?
The Weldy Roof40 is a high-performance automatic hot air welding machine specifically engineered for commercial and industrial roofing applications. Designed and manufactured by Weldy (a sub-brand of Switzerland's Leister Group — 75+ years of engineering heritage), the Roof40 delivers consistent, leak-proof seams on thermoplastic roofing membranes including TPO, PVC, FPO, and EVA. It bridges the gap between handheld hot air guns and heavy-duty industrial welding systems — offering professional-grade automation in a portable 15.5 kg package.
Unlike handheld welders that rely on operator skill for seam consistency, the Roof40 uses a closed-loop digital control system that automatically maintains the set temperature, airflow, and welding speed. This ensures uniform weld quality across thousands of square meters — critical for commercial flat and pitched roofing projects where seam integrity directly determines long-term waterproofing performance.
2. Technical Specifications and Key Features
The Roof40 is built around a powerful 3450W heating system paired with a brushless drive motor that eliminates carbon brush maintenance. Engineered for both factory production and outdoor construction, the Roof40 handles inclines up to 30 degrees thanks to its patented drive system.
| Parameter | Specification |
|---|---|
| Power | 3450 W (230V / 50-60Hz) |
| Welding Speed | 1 – 10 m/min (stepless adjustment) |
| Temperature Range | 100 – 600°C |
| Seam Width | 40 mm |
| Edge Welding Distance | Up to 100 mm (close-to-edge capability) |
| Airflow | Adjustable, controlled via digital display |
| Weight | 15.5 kg (balanced ergonomic design) |
| Dimensions (L x W x H) | 475 x 244 x 260 mm |
| Drive System | Brushless motor — low maintenance, long service life |
| Control System | Closed-loop digital (temperature, speed, airflow) |
| Max Incline | Up to 30 degrees (patented drive) |
| Power Plug | CEE blue, 3-pole, 16A (3m cable) |
Key design highlights include a guide rod for directional control, pressure wheels that ensure uniform pressure across the entire seam, and quick-install overlap nozzles. The slim body with a movable rear axle allows access to tight spaces — skylight perimeters, low parapet walls, and roof penetration details.
3. Weldable Materials and Applications
The Roof40 is compatible with virtually all thermoplastic roofing membrane types, making it a universal solution for diverse projects:
- PVC (Polyvinyl Chloride) — The most widely used single-ply roofing membrane; ideal for commercial and industrial flat roofs
- TPO (Thermoplastic Polyolefin) — Fastest-growing commercial roofing segment; energy-efficient with excellent UV and chemical resistance
- FPO (Flexible Polyolefin) — Premium alternative with enhanced flexibility for complex roof geometries
- EVA / ECB / EPDM — Specialty membranes for pool waterproofing, underground structures, and bitumen applications
- TPE / TPU / PIB — Technical membranes for banners, industrial fabrics, and specialty containment

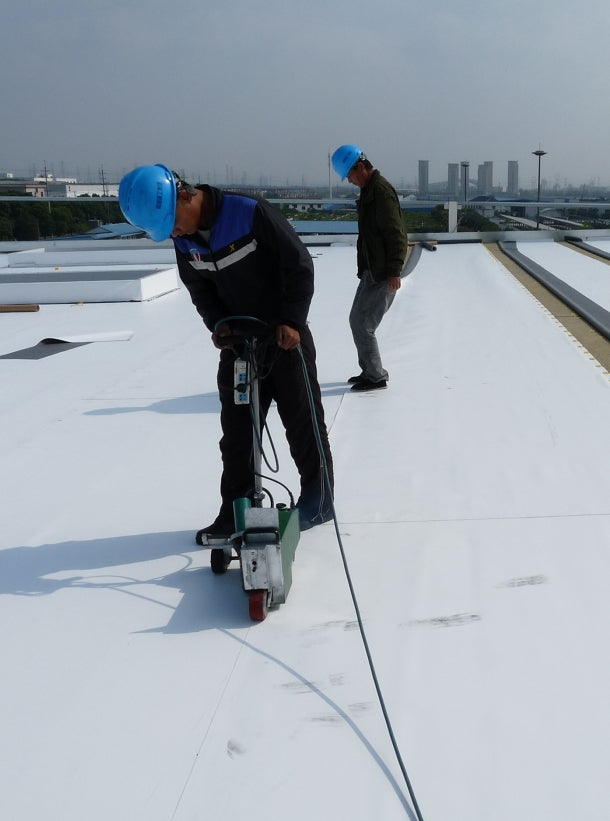

In practice, the Roof40 excels in both factory production lines (membrane pre-fabrication, custom panel assembly) and on-site outdoor construction — handling large-area overlap welding, skylight perimeters, and flashings with equal precision. On a recent commercial project in a Southeast Asian industrial zone, a single Roof40 unit installed over 8,000 m² of PVC roofing membrane in just 10 working days. The digital controls allowed rapid temperature compensation as ambient conditions shifted from hot midday sun to cooler afternoons, maintaining consistent seam quality throughout.
4. Temperature and Speed Settings: Key Operating Parameters
Achieving a durable, watertight weld demands the correct balance of temperature, speed, and pressure. The table below provides starting parameters based on ASTM D6392 (seam integrity testing) and DVS 2207-3 (thermoplastic welding standards). Always perform test welds on scrap material before beginning production.
| Membrane | Temperature (°C) | Speed (m/min) | Standard |
|---|---|---|---|
| PVC (1.2-2.0 mm) | 280 – 350 | 3.0 – 5.0 | DVS 2207-3 |
| TPO (1.1-1.5 mm) | 320 – 420 | 3.5 – 6.0 | ASTM D6392 |
| EVA / FPO | 250 – 350 | 2.5 – 4.5 | DVS 2207-3 |
Key operating guidelines: Perform at least two test welds daily — at shift start and after lunch — and whenever ambient conditions change. Welding on polyiso insulation (which retains heat) versus concrete (which draws heat away) may need different settings. The Roof40's digital display makes these adjustments fast and repeatable.
5. Quality Control and Seam Testing per ASTM D6392
Seam integrity is the foundation of a successful roofing installation. The Roof40 produces a uniform 40mm hot-air overlap seam that can be non-destructively or destructively tested. On commercial projects, QA/QC engineers typically follow this protocol:
- Seam Probing (Daily): After cooling, probe the entire seam edge with a blunt metal tool. A sound weld resists probe entry. Inspect all seams at the end of each workday.
- Destructive Testing (ASTM D6392): Cut 25mm-wide test coupons perpendicular to the weld. Perform peel testing at 50 mm/min (HDPE) or 500 mm/min (LLDPE). A successful weld achieves Film Tear Bonding (FTB) — the membrane tears before the seam separates.
- Test Frequency: Minimum one destructive test per 150m of seam length, or one per machine per day — whichever is greater. Document all results.
6. Maintenance and Care: Maximizing Roof40 Service Life
Consistent maintenance ensures reliable weld quality and long service life. Follow these routines:
- Daily: Clean the air intake filter — dust reduces airflow and causes overheating. Brush the nozzle with the supplied brass wire brush to clear char. Inspect silicone pressure wheels for debris or uneven wear.
- Weekly: Check nozzle alignment — misalignment causes "heel drag" that gouges the membrane outside the seam. Verify temperature calibration with a contact thermometer; the display should match within ±5°C.
- Monthly: Inspect the brushless drive motor and gear assembly. Clean all electrical contacts. Check the power cable for cuts or kinks.
- Long-Term Storage: If unused for 4+ weeks, preheat for 30 minutes before welding to drive out moisture. Store in the included case in a dry environment.
The Roof40's brushless drive motor significantly reduces maintenance compared to brushed alternatives — no carbon brushes to replace and a sealed design that protects against job-site dust.
7. Why Buy from Weissenberg — Your Official Weldy Distributor
When you purchase the Weldy Roof40 from Weissenberg, you receive more than a machine — you gain a technical partner with 19+ years of thermoplastic welding expertise:
- 100% Genuine Weldy Products — Full manufacturer warranty with factory traceability, CE certification, and ISO 9001 compliance
- Competitive Pricing — Direct distributor pricing from a long-term partnership with Weldy/Leister Group
- In-Stock Availability — Roof40 units held in stock; 48-hour domestic, 72-hour international shipping
- Technical Support — Pre-sale selection guidance, application advice, and after-sale troubleshooting in multiple languages
- Complete Accessories — Spare pressure wheels, nozzles, guide rods, and parts available from stock
Ready to upgrade your roofing installation efficiency? Visit the Weldy Roof40 product page for current pricing, or browse the complete Weldy range at Weissenberg Store. Contact our technical team for personalized equipment selection guidance — we've been helping contractors choose the right thermoplastic welding solutions since 2004.
Author: Weissenberg Technical Team | 19+ Years in Thermoplastic Welding Industry
Standards Referenced: ASTM D6392, DVS 2207-3, ISO 9001, CE
Disclaimer: Welding parameters may vary based on material formulations, ambient conditions, and project requirements. Always refer to the product manual and membrane manufacturer's installation guidelines.
